WBC Live Stream Camera Settings

The following are good baseline settings for a standard evening service, with the stage (Lecturn and Band) lights on full, and the camera zoomed in on the person at the lecturn. It is recommended that you start with the following settings, then make minor adjustments as required.

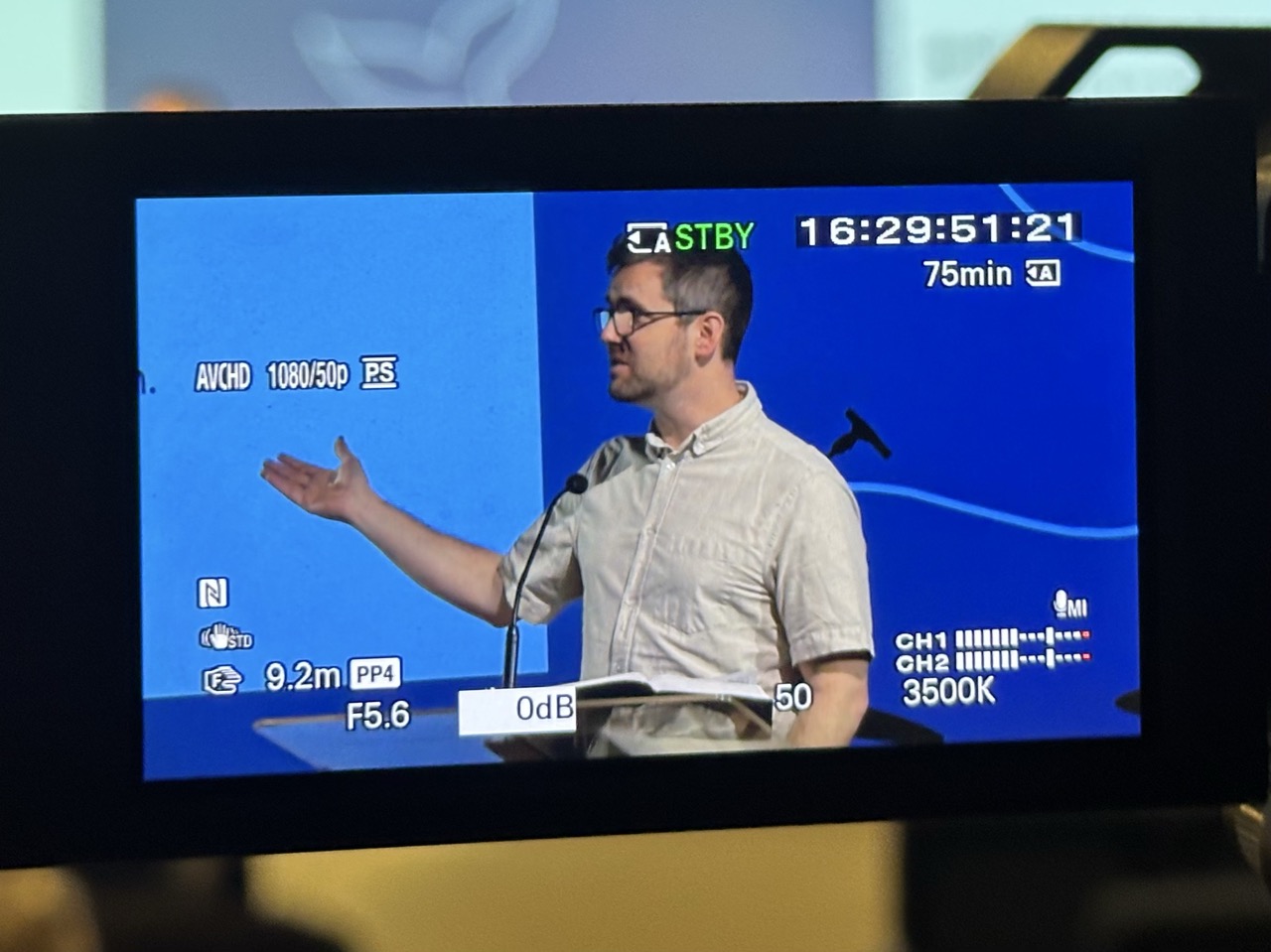

Zoom and frame: tight, speaker centred not lecturn centred

Focus: manual (AF/MF button)
Focal Length: Approximately 7.5m (this won't show on the screen except while being adjusted)
NOTE: If correctly focussed, you should be able to read both the first and last name on the subject's name sticker
NOTE: Adjusting the zoom will also have an effect on the focus settings

Rear Switch: Manual
Iris: F4.8
Gain: 0dB
Shutter Speed: 50
IMPORTANT: They should not have an "A" in front of them - if they do you need to press the button again to disable auto adjustment

If the image is overexposed (too bright) increase the Iris (F) value
If the image is underexposed (too dark) reduce the Iris (F) value, but make sure that the speaker's skin is not overexposed
If the Iris is at it's minimum value, and the image is still underexposed (too dark) you can increase the Gain above 0dB, however this should be a last resort and only necessary if the stage lights are not on, for example.

Temperature: 3500K
(Menu -> Camera Set -> WB Temp Set -> 3500K)

IMPORTANT: If the colour temperature is not shown on the screen, it means it is in auto mode. Press the WHT BAL button so that the colour temperature shows, then set it to 3500K through the menu as above.
